Display-related equipment

358L(Kurihara Seisakusho)

Basic specifications

Autoclave that can be used for large products (installed in December 2020)

Basic specifications

Size: W300 x L450 x T (total height) 150 (mm)
Laminated product: glass + film, film + film, glass + glass
Laminated shape: Flat + Flat, 2.5D + 2.5D, 3D + 3D, etc.
Position accuracy: ± 0.05mm (alignment mark or outer shape alignment)
Pressurization setting range: 0.05 to 0.5 MPa
Chamber vacuum: 50 Pa or less

Vacuum laminating machine
With camera alignment, it is possible to laminate with high accuracy of ± 0.05 mm between alignment marks.
For alignment, you can use specially formed marks, print openings, film and panel outlines, panel active areas, and other areas that can be seen with the camera.

The laminating objects can be used not only for rigid bodies such as glass panels and cover glasses, but also for attaching films to glass and attaching films to each other.
Since the total height of the laminating object and the laminated object is up to 150 mm, it can be laminated on complicated shapes.
As for the shape, it can be used not only for planes but also for 2.5D and 3D shapes. When attaching to a three-dimensional object or curved surface shape, it is necessary to confirm whether the device can be supported on a case-by-case basis, so it is necessary to confirm whether it can be supported each time.

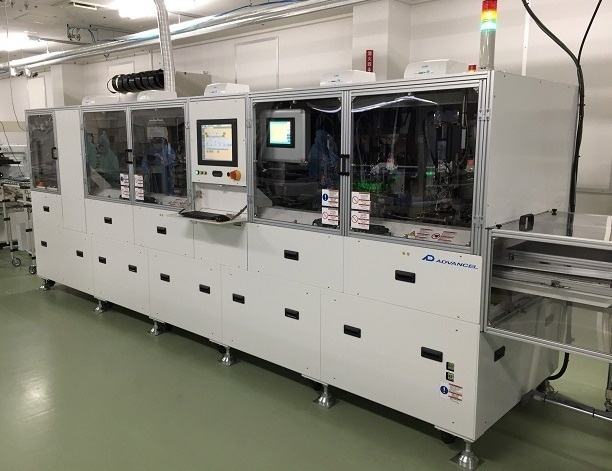

Basic specifications

Bonding accuracy: ± 4 μm 3σ (26 μm pitch available)
Pulse heat head capability:
◎ Temperature rise: Room temperature → 450 ℃ / 2 seconds
◎ Cooling: 450 ℃ → Room temperature / 30 seconds
* Low temperature ACF (high reaction ACF) compatible / Connection void-less
High load head capacity: 2000N
Corresponding size: 1 to 17in
Equipment cycle time: 15 seconds / 1FPC
With wet cleaning / plasma cleaning function

Basic specifications

Telephoto type with auto-alignment function
Laminating accuracy: ± 0.05
Corresponding size: W500 × L600 × T (total height) 15mm
Weight: up to 3 kg
Please use it for bonding various thin materials such as touch panels, cover glass, protective films, etc.
If the curvature is loose, 2.5D (kamaboko type) support is also possible.
Conditions vary depending on the object, so please contact us each time.

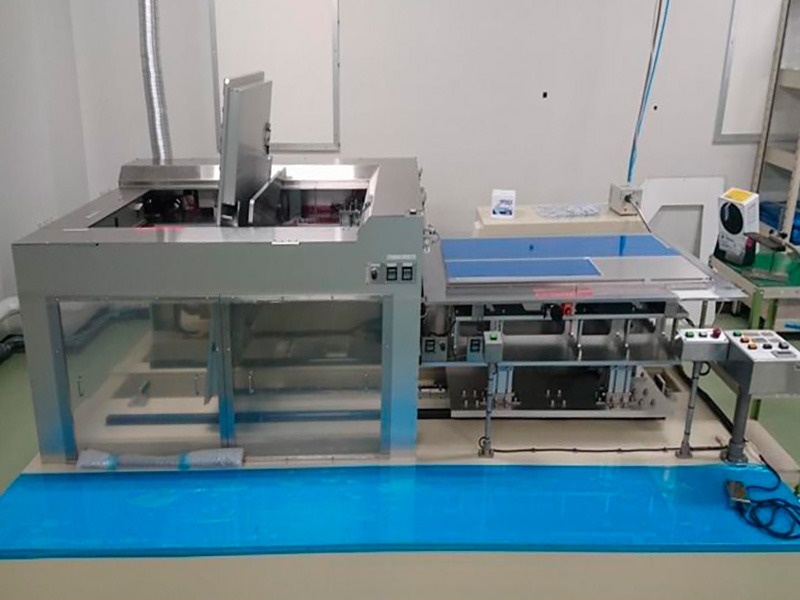

Basic specifications

Applications: Various film lamination for liquid crystal panels / glass (LCD to POL / CG to SF)
Corresponding panel size: Min: 180 × 240mm (12inch) / Max: 600 × 1070mm (47inch)
laminating accuracy: ± 0.3 mm (X.Y)

A film laminating machine that supports large sizes.
Film can be laminated to work-pieces up to 600 × 1070 mm. It can be used for laminating the polarizing plate of LCD and laminating it to the film on the cover glass.
Alignment is mechanical alignment, which positions and laminates the outer shape of the cover glass or LCD panel and the outer shape of the film. The laminating accuracy is ± 0.3 mm.

Basic specifications

This machine measures / inspects the assembly accuracy of back-lights and LCD panels.
Measure X-axis and Y-axis dimensions. Minimum display unit 1/1000 mm
Automatically move to the measurement position registered in advance
Camera field of view 14.0 × 10.5 mm (resolution 2 million pixels)

Basic specifications

If the parts are made with high accuracy, the laminating accuracy can be pushed within 35 micron in the range.
Corresponding work size 5 to 13 type
Automatic image alignment (camera field of view 14.0 × 10.5 mm, 2 million pixels)
Adjustable pressurization during laminating (maximum pressure 150N)

FPX 105CG (Panasonic)

Basic specifications

Compatible with 1 to 17 inch size panels
Supports 2-sided bonding (up to 6 ICs)
Automatic bonding from ACF bonding, temporary bonding to main bonding
Compatible with a large number of ICs and small-lot production

AD-530SC (ADVANCEL)

Basic specifications

Corresponding panel (PCB board) dimensions: MAX width up to 500 mm (panel size guideline: 6 inches to 23 inches)
Pressurized cylinder stroke: 30mm
Pressurized head thrust: MAX500kgf

AD-AC-500H (ADVANCEL)

Basic specifications

Corresponding panel (PCB board) dimensions: MAX width up to 500 mm (panel size guideline: 6 inches to 23 inches)
Corresponding panel (PCB board) Thickness: 0.4-1.0mm
ACF width: 1.0-3.0mm
Pressurizing capacity: 290-1080N (30-110kgf)

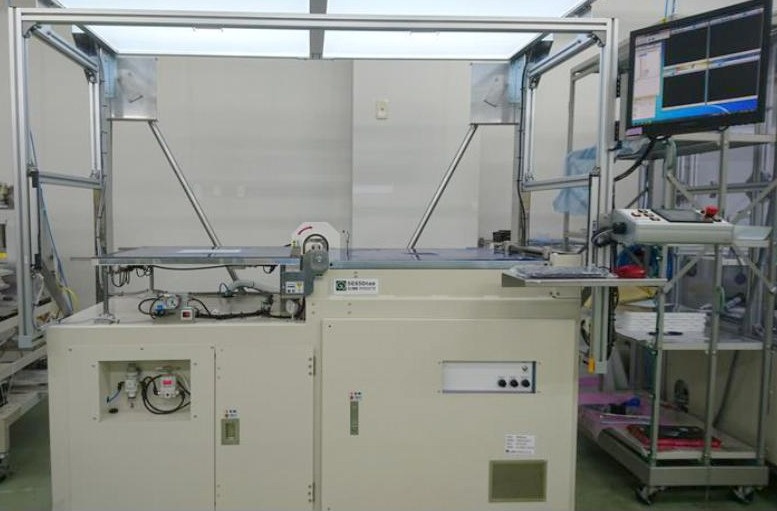

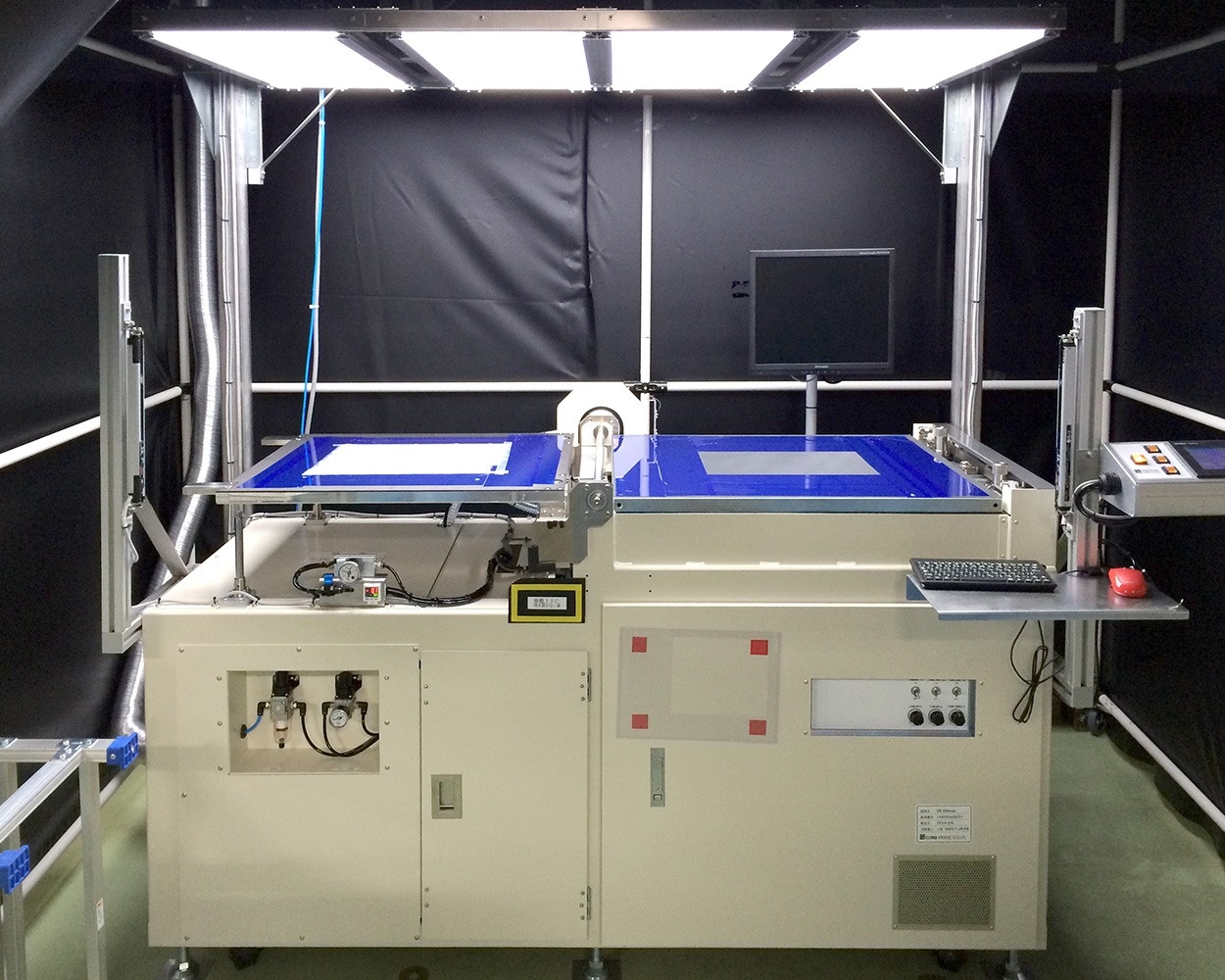

SE650n (CLIMB PRODUCTS)

Basic specifications

Corresponding size: Max. 500 (W) × 600 (L) × total 15 (t) mm
Weight: up to 3 kg
Laminating accuracy: ± 0.1 mm (machine repeatability ± 0.02 mm)

This is a semi-automatic sheet-fed laminating machine that laminates films with rollers under atmospheric pressure.
High-precision laminating of ± 0.1 mm can be performed on work pieces of up to 500 × 600 mm by camera alignment.

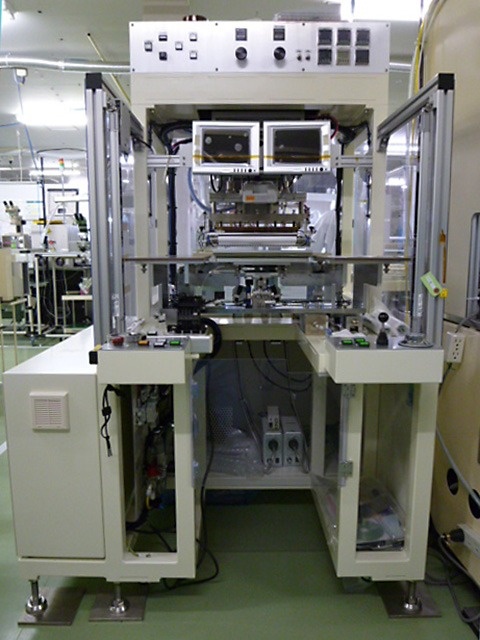

Basic specifications

Corresponding panel size: 4 to 13.3 inches
laminating accuracy: ± 0.05 mm
Work holding with a holding sheet that does not allow air bubbles to enter the front and rear ends

High Load Bonder FS3715 (Ishiyama)

Basic specifications

Pressurized pressure: 20 - 140 kgf
Set temperature: Room temperature to 500 ℃
Bonding time: 0 - 99.9 seconds
Corresponding panel size: 150 × 100-450 × 250 mm
Corresponding FPC size: 40 × 20-450 × 250 mm
ESD measures: Static discharge blower from the side of the stage

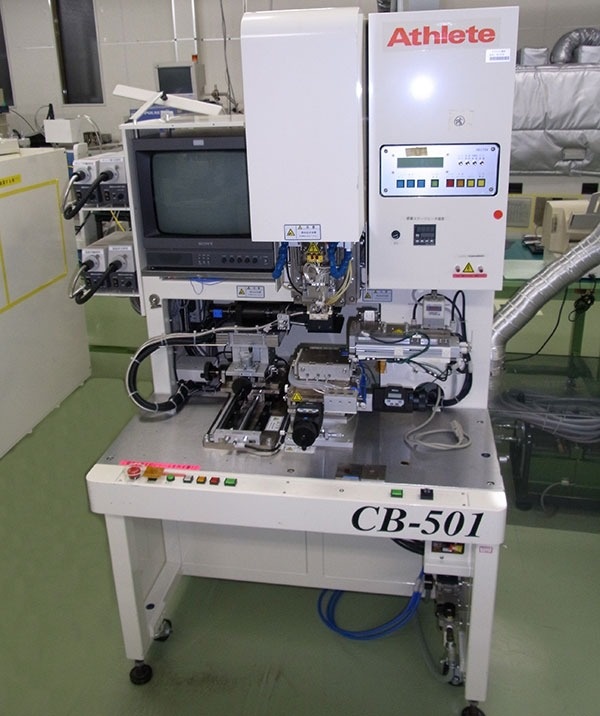

CB501 (Athlete)

Basic specifications

Corresponding IC size: 20mm × 20mm
Corresponding board size: 60mm × 60mm
Weighting capacity: 100g-50kg
Heating capacity: Room temperature to 500 ° C (setting)

By manual operation for the supply and removal materials of the product, it is possible to respond to "non-standard" prototypes with a small turn.
We accept contracts for difficult prototypes that are difficult to handle with fully automatic machines.

ABM-411 (OHASHI ENGINEERING)

Basic specifications

This is a semi-automatic machine, we will make a small turn and support trial production in small quantities.

CB-2003

Basic specifications

Corresponding panel dimensions: 5 inches
Dr length: 55mm
Bonding accuracy: ± 4.5 micron

FB-03

Basic specifications

Corresponding panel dimensions: 150mm × 150mm

F-20

Basic specifications

Corresponding panel dimensions: 5 inches
Bonding length: 55mm

ASG M3BC

Basic specifications

MPS-01 (D&T)

Basic specifications

Panel cleaning machine

A multi-layer rocking panel pure water washer. It supports sizes up to about 12 inches.
