Measurement Equipments/Testers

FGS-100VS (SHIMPO)


Specifications
  • Electric vertical force gauge
  • Load : 0.1N ~ 100N (0.01kg ~ 10kg)
  • Stroke : Up to 400mm
  • Feed rate : 10-400 mm / min

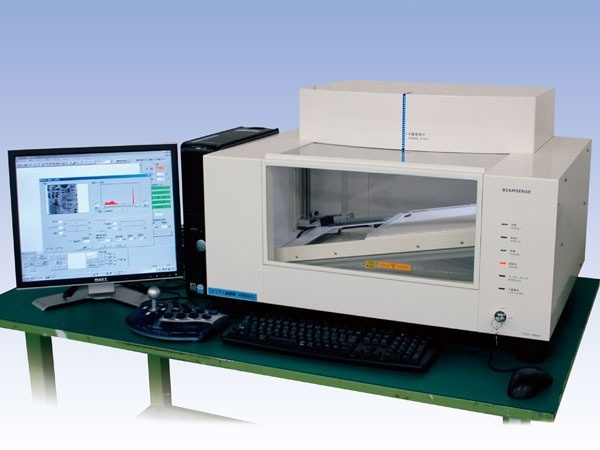

FLEX-M863 (BEAMSENSE)


Specifications
  • Easy-to-use design by XBOX 360 designer
  • RGB 1.5 million pixels (equivalent to B / W 4.5 million pixels) CCD sensor
  • Maximum resolution : 2 μm (at 10 times magnification 1500 x 1000 pixels)
  • Stage size : 350 mm x 270 mm, 17 ° tilt (left and right) possible
  • Easy data handling due to Windows base

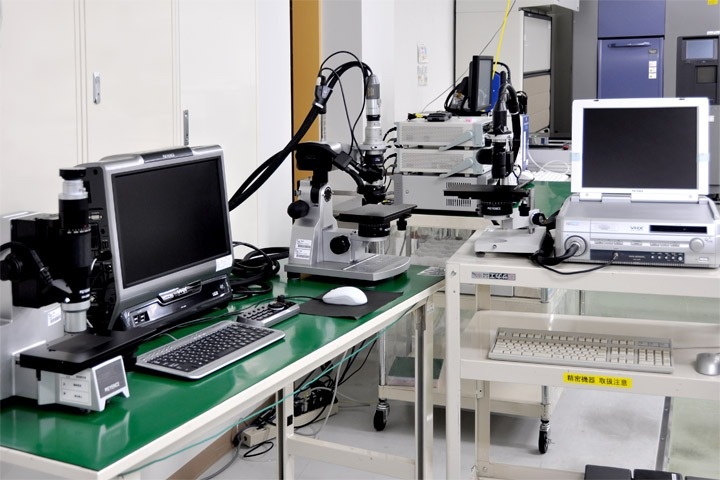

VHX-200/VHX-1000 (KEYENCE)


Specifications
  • 3 types of lens variations from x5 to x3000
  • Easy handling of captured images due to PC-based data management
  • Improving credibility by providing image data to customers

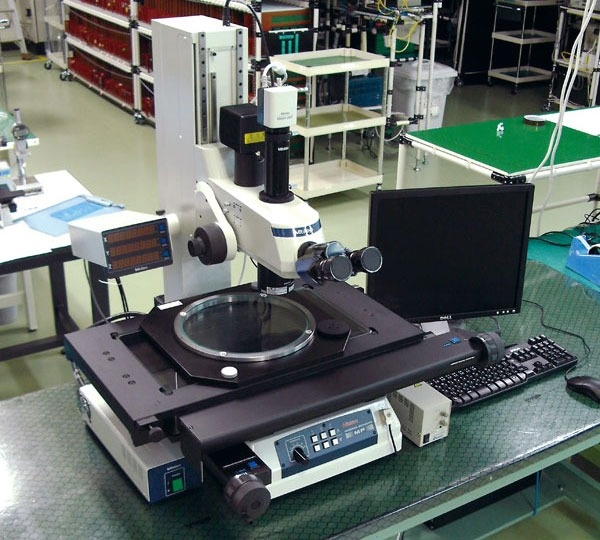

MF-B4020B (Mitsutoyo)


Specifications
  • Measuring range : 400 x 200 mm
  • Eyepiece : Binocular 10x
  • Objective lens : 3x, 5x, 10x, 20x
  • Image unit : 8BS system
  • Measurement accuracy : (2.5 + 0.02L) μm [L: Measurement length (mm)]

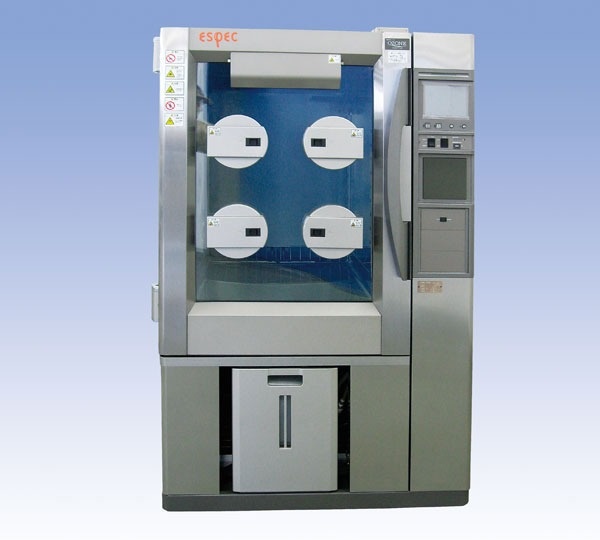

PWL-3KP (Espec)


Specifications
  • Smooth sample confirmation with front glass door
  • Temperature range : -40 to + 120 ° C
  • Humidity range : 20-98% RH
  • Inner dimensions : W600 x H850 x D800mm 408L

TSA-71L-A (Espec)


Specifications
  • 3-zone method by switching dampers
  • High temperature side: + 60 to + 200 ° C
  • Low temperature side: -65 to 0 ° C
  • Test area dimensions: W410 x H460 x D370 mm
  • Exposure time: 1 minute to 99 hours 59 minutes
  • Test cycle: 1 to 9999 cycles

Series 4000 (Nordson Advanced Technology)


Specifications
  • Ball / bump share : 0-50N [0-5Kgf]
  • Die share / stud pull : 0 to 1000N [0 to 100Kgf]
  • Wire pull : 0-100N [0-10Kgf]
  • Tweezers peel : 0-50N [0-5Kgf]
