Other equipment

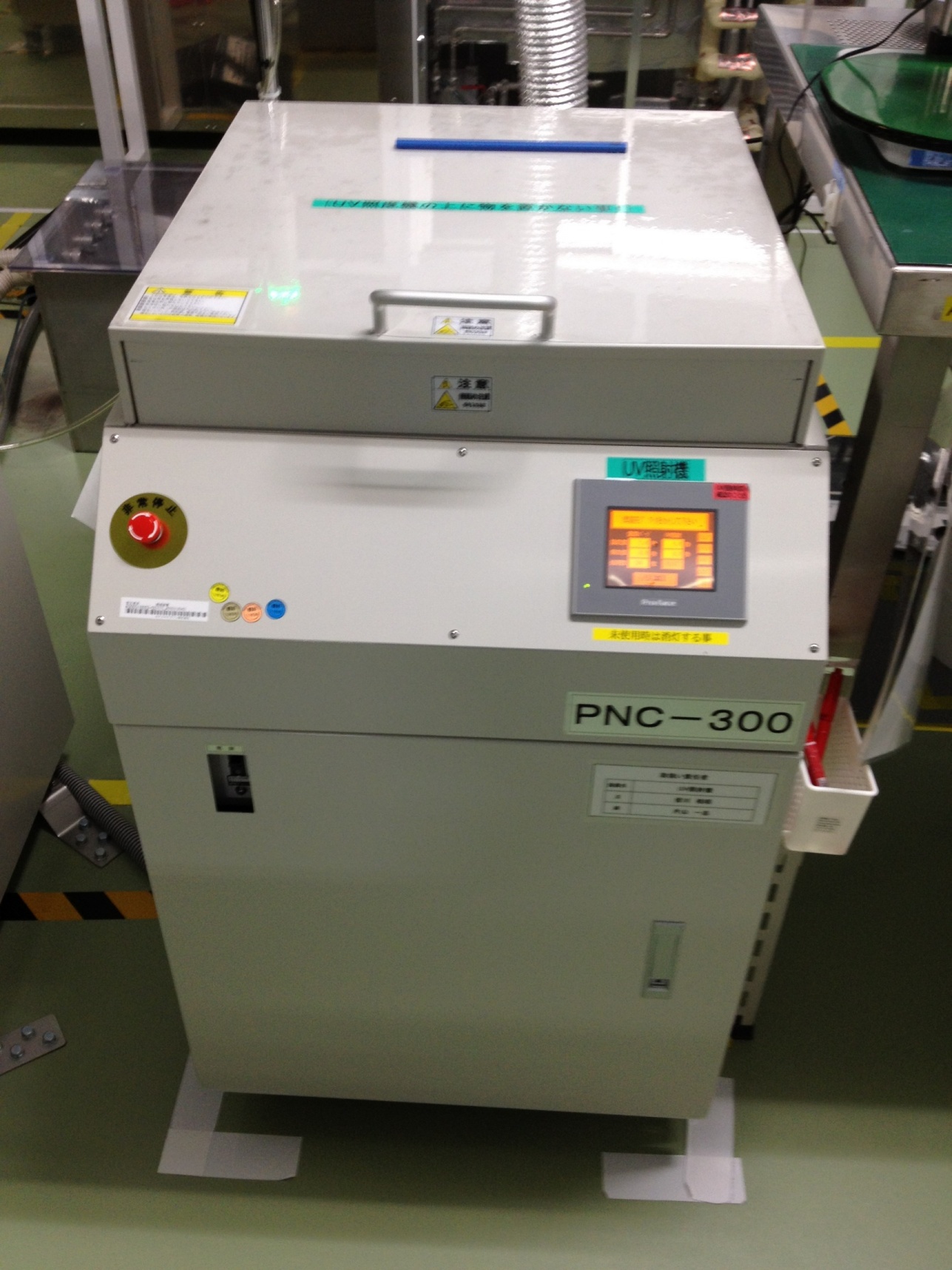

Ultraviolet irradiation machine for peeling dicing tape

PNC-300

Specifications
  • 6-8 inch frame (disco type)
  • Irradiation time setting : MAX 99 seconds
  • Adjustable nitrogen purge amount
  • Metal Harald Lamp (Ozoneless Type)
  • Wavelength : 300-450 mm
  • Reflector : Cold mirror minimizes heat effect

Built-in chamber

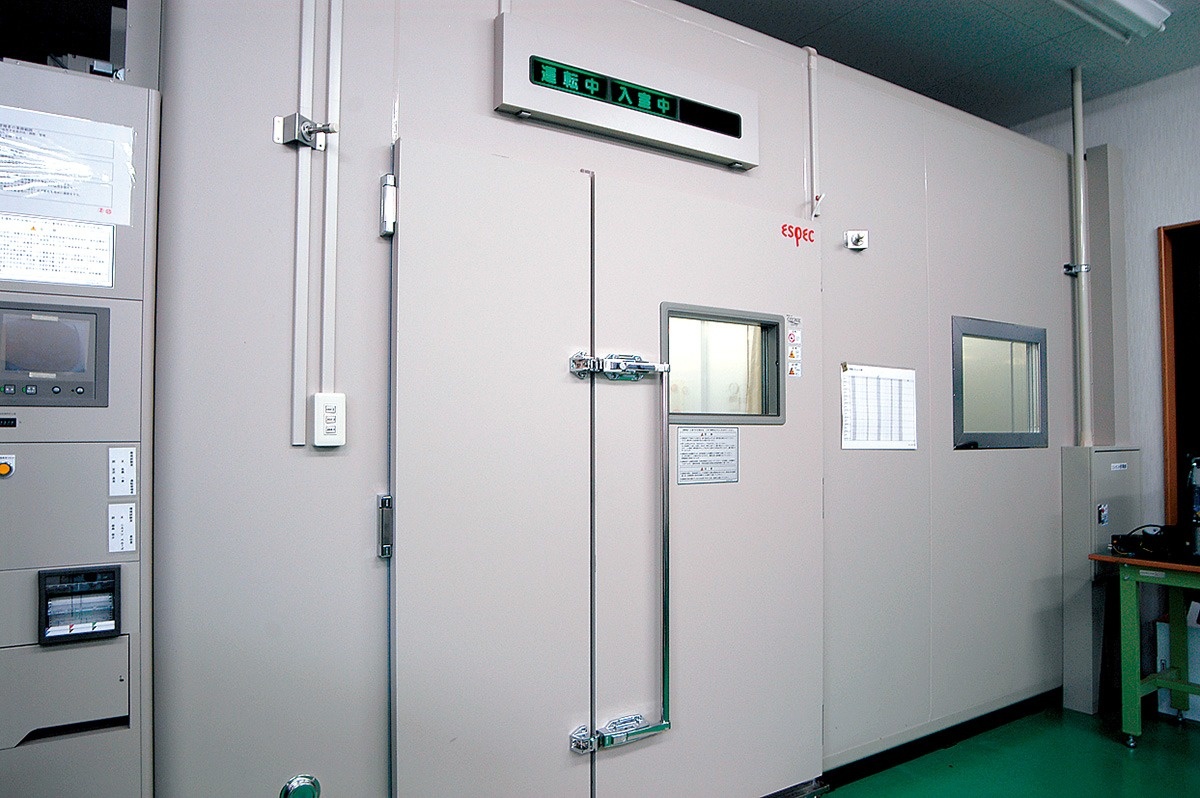

Temperature & Humidity Chamber (Espec: 2 units, Isuzu: 1 unit)

Specifications
  • Temperature control range : -10 ° C to 80 ° C
  • Humidity control range : 10% to 95% (at 10 to 60 ° C)
  • Allowable load : Heat generation: 4KW
  • Moisture load : 500 g / h Ventilation volume: 60 m3 / h
  • Inner dimensions : W4m x D5m Indoor height 2.2m
  • Door : Double door W1400mm x H1800mm
  • Operation mode : Program operation / stationary operation
  • Indoor outlet power supply : ◎ 100V, 20A ◎ 240V, 15A
  • * Variable from 100V to 240V
  • Indoor ventilation capacity : forced ventilation system, ventilation volume 60m3 / h
